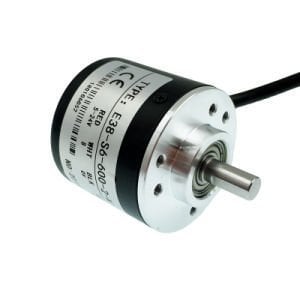

Optik Enkoder 400BM 5-24V E38S6G5-400B-G24N
AB iki fazlı artımlı optik döner kodlayıcı 400 darbeli, NPN açık kollektör çıkışı.
Standard with 1.5m cable
Performance: 400 pulses / rev.
Operating voltage: DC5-24V
AB iki fazlı artımlı optik döner kodlayıcı 400 darbeli, NPN açık kollektör çıkışı.
Standard with 1.5m cable
Performance: 400 pulses / rev.
Operating voltage: DC5-24V
Maximum mechanical speed: 5000 rpm
Electrical response frequency: 20 K / s
Integrated speed: 2000 rpm
Size: encoder body size: oder38mm; shaft 136 × 13mm; Axis platform: high 5mm, 2020mm; Fixing holes: M3 screws
28 circles with three mounting holes and 30 with three mounting holes; side
Exit:
AB rectangular two-phase quadrature pulse output circuit output NPN open collector output type, with this output type and internal pull-up resistor connected directly to the microcontroller or PLC, such as the 51 single or Mitsubishi PLC (PLC must be connected to the input connected to 0 v ), Note: If the encoder is not connected to the device, the oscilloscope cannot be an oscilloscope (open collector output when there is no tensile resistance, there is no voltage output) please to the oscilloscope plus two pull-up resistor AB two-phase output;
How to link:
Green = one phase
White = B phase
Red = VCC positive supply
Black = GND
Note: one phase and B phase output lines must not be connected directly to the vcc, otherwise they will burn out the output triode.
Package included:
1 x EU two phase 400 pulses incremental optical rotary encoder
