YENİ
2.3nm enkoderli step motor cs-m22326
3.510,00 TL KDV Dahil
*912,60 TL den başlayan taksitlerle!!

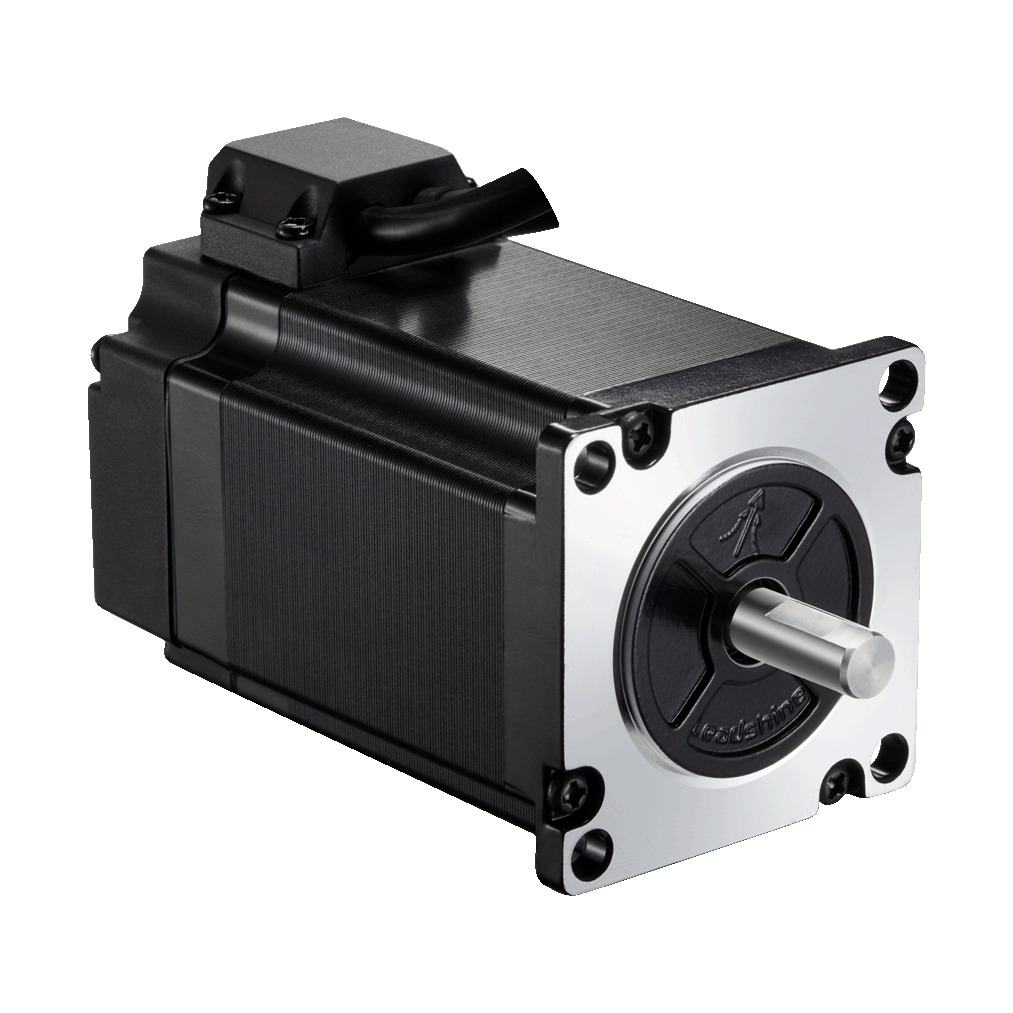

leadshine 2.3 enkoderli step motor cs-m22323
2 phase, NEMA 23 frame size
96 mm (3.78 inch) long
5 A phase current
2.3 N.m (326 oz-in) holding torque
8 mm (0.315 inch) shaft size
Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder
High precision, low motor heating, and low vibration
| Model | CS-M22323 |
| Series | CS-M |
| Phase | 2 phase |
| Frame Size (NEMA) | 23 |
| Length (mm) | 96 |
| Holding Torque (N.m) | 2.3 |
| Phase Current (A) | 5.0 |
| Shaft Diameter (mm) | 8 |
| Center Diameter (mm) | 38.1 |
| IP Rate | IP40 |
| Characteristics | Standard |
| Resistance (Ohm) | 0.38 |
| Inductance (mH) | 1.75 |
| Inertia (kg/cm2) | 0.48 |
| Weight（kg） | 1.3 |
step motor, step motor sürücü, enkoderli step motor sürücü
