DM556 2 Faz 50V 5.6A Step Motor Sürücü

     Extra smooth movement Low drive & motor heating Step & direction or CW/CCW control DSP-based stepper control technology Automatic motor identification and self configuration. This driver is a DSP digital DM556 stepper motor driver, subdivision increased to 128 subdivision, suitable for high subdivision purposes. Suitable for stepping motors: 42, 57, 86 type 2-phase 4-phase (4 lines, 6 lines, 8 lines)

Features:

•     Supply Voltage: DC 20-50V
•     Maximum frequency:200KHz
•     H-bridge bipolar constant-phase flow drive.
•     Eight kinds of output currents with current up to 5.6A can be selected.
•     Fifteen subdivision modes that can be subdivided to 128 are optional.
•     Standard monopulse interface
•     High-speed photoelectric isolation of input signal.
•     Offline maintenance function.
•     Provide energy-saving semi-automatic current locking function.
•     Built-in temperature protection and over-current protection.
•     Extra smooth movement
•     Low drive & motor heating
•     Step & direction or CW/CCW control
•     DSP-based stepper control technology
•     Automatic motor identification and self configuration

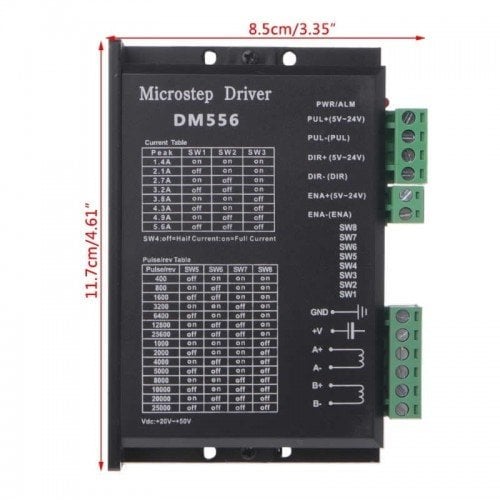

•     Size: 11.7*8.5cm/4.61*3.35inch
