A3967 Step Motor Sürücü

30V A3967 EasyDriver Step Motor Sürücü Modül

Description：

    The EasyDriver is a simple to use stepper motor driver, compatible with anything that can output a digital 0 to 5V pulse (or 0 to 3.3V pulse if you solder SJ2 closed on the EasyDriver).
    EasyDriver requires a 7V to 30V supply to power the motor and can power any voltage of stepper motor. The EasyDriver has an on board voltage regulator for the digital interface that can be set to 5V or 3.3V. Connect a 4-wire stepper motor and a microcontroller and you've got precision motor control!
    EasyDriver drives bi-polar motors, and motors wired as bi-polar. I.e. 4,6, or 8 wire stepper motors.

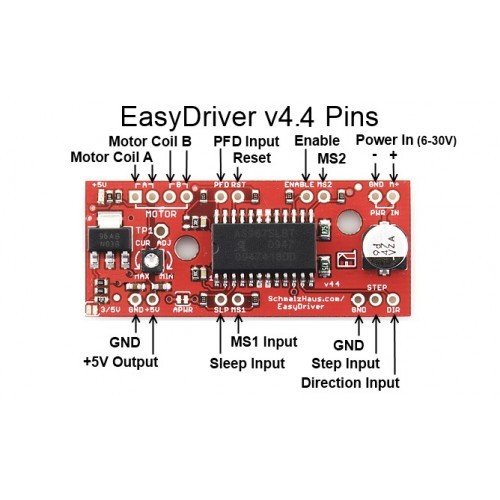

    This is the newest version of EasyDriver V4.4 co-designed with Brian Schmalz. It provides much more flexibility and control over your stepper motor, when compared to older versions. The microstep select (MS1 and MS2) pins of the A3967 are broken out allowing adjustments to the microstepping resolution. The sleep and enable pins are also broken out for further control.
    Stepper motors usually have a defined number of steps or step angle parameters, general motor revolution is divided into 200 steps, that is, step angle of 1.8 degrees, EasyDriver having a step away from the breakdown of features, this drive plate segments 8 segments, that is, every step of the motor is subdivided into 8 small step, this can be able to get more precise control, that EasyDriver 1600 steps needed to complete a full 360 degree rotation.


Note:

•     Do not connect or disconnect a motor while the driver is energized. This will cause permanent damage to the A3967 IC.
•     Better use high power supply when drive high power motors, voltage should be NOT over 30V
•     This product is a collaboration with Brian Schmalz. A portion of each sales goes back to them for product support and continued development.

Features:

•     A3967 microstepping driver IC
•     The EasyDriver is a simple to use stepper motor driver, compatible with anything that can output a digital 0 to 5V pulse (or 0 to 3.3V pulse if you solder SJ2 closed on the EasyDriver).
•     EasyDriver requires a 7V to 30V supply to power the motor and can power any voltage of stepper motor.
•     The EasyDriver has an on board voltage regulator for the digital interface that can be set to 5V or 3.3V.
•     Connect a 4-wire stepper motor and a microcontroller and you\'ve got precision motor control!
•     EasyDriver drives bi-polar motors, and motors wired as bi-polar.
•     Compatible with 4, 6, and 8 wire stepper motors of any voltage
•     On this version (v4.4) we fixed the silk error on the min/max adjustment.
•     MS1 and MS2 pins broken out to change microstepping resolution to full, half, quarter and eighth steps (defaults to eighth)
•     Adjustable current control from 150mA/phase to 750mA/phase
•     Power supply range from 7V to 30V. The higher the voltage, the higher the torque at high speeds

Paket İçeriği :

•    1 Adet A3967 Step Motor Sürücü
•    1 Adet 17 Pin Erkek header.
